How to Set Up SMTP Servers

Admoji uses SMTP servers to send transactional emails — order confirmations, autoresponders, and other automated messages — to your customers. You can configure multiple SMTP servers and assign them to different campaigns as needed.

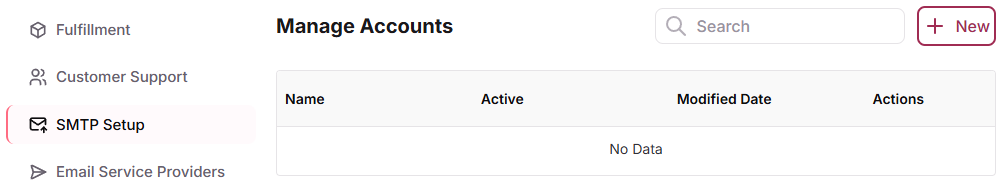

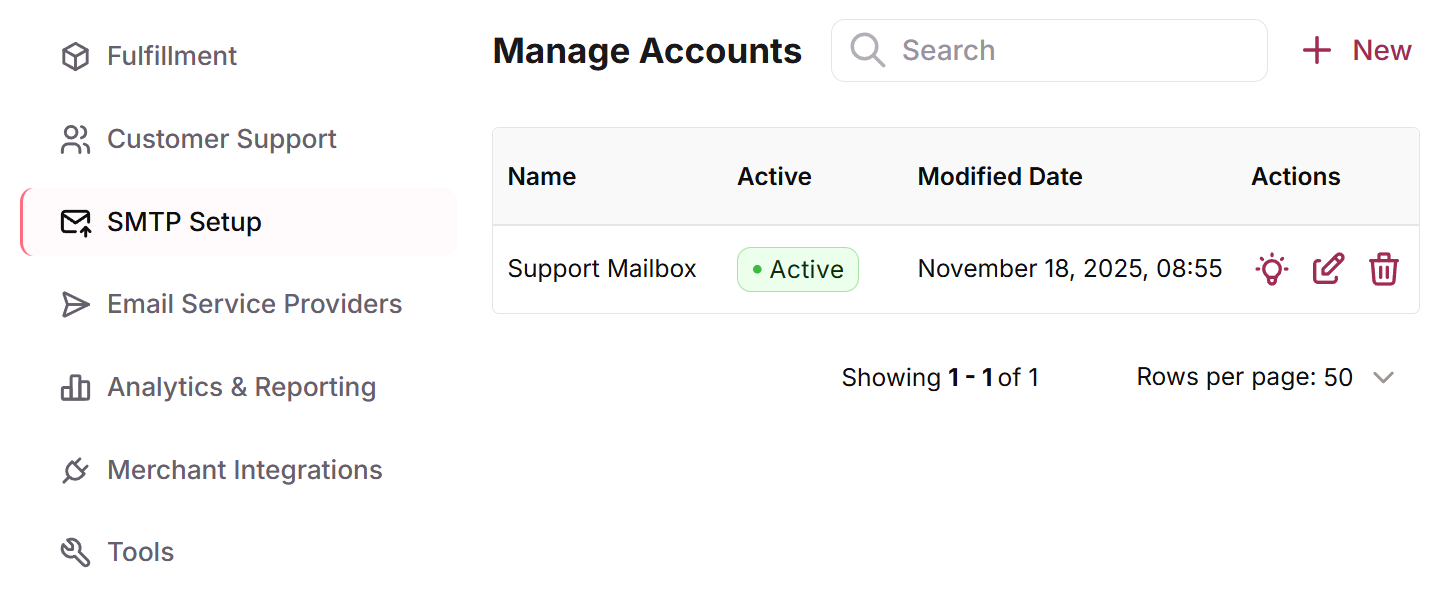

Step 1: Access SMTP Setup

  1. Click Go to E-commerce.

  2. Go to Administration > Plugins.

  3. Click the SMTP Setup tab.

  4. Click New to add a server.

Access SMTP Setup

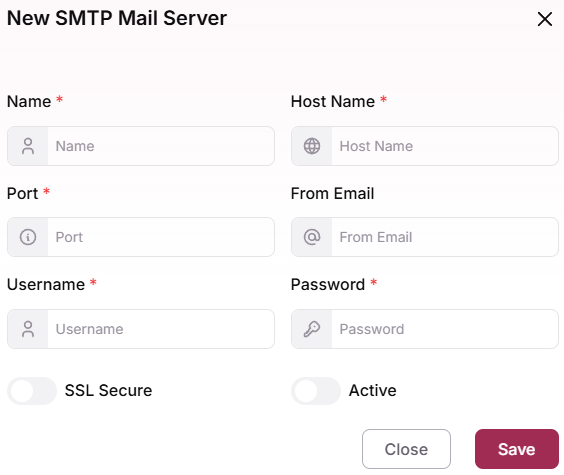

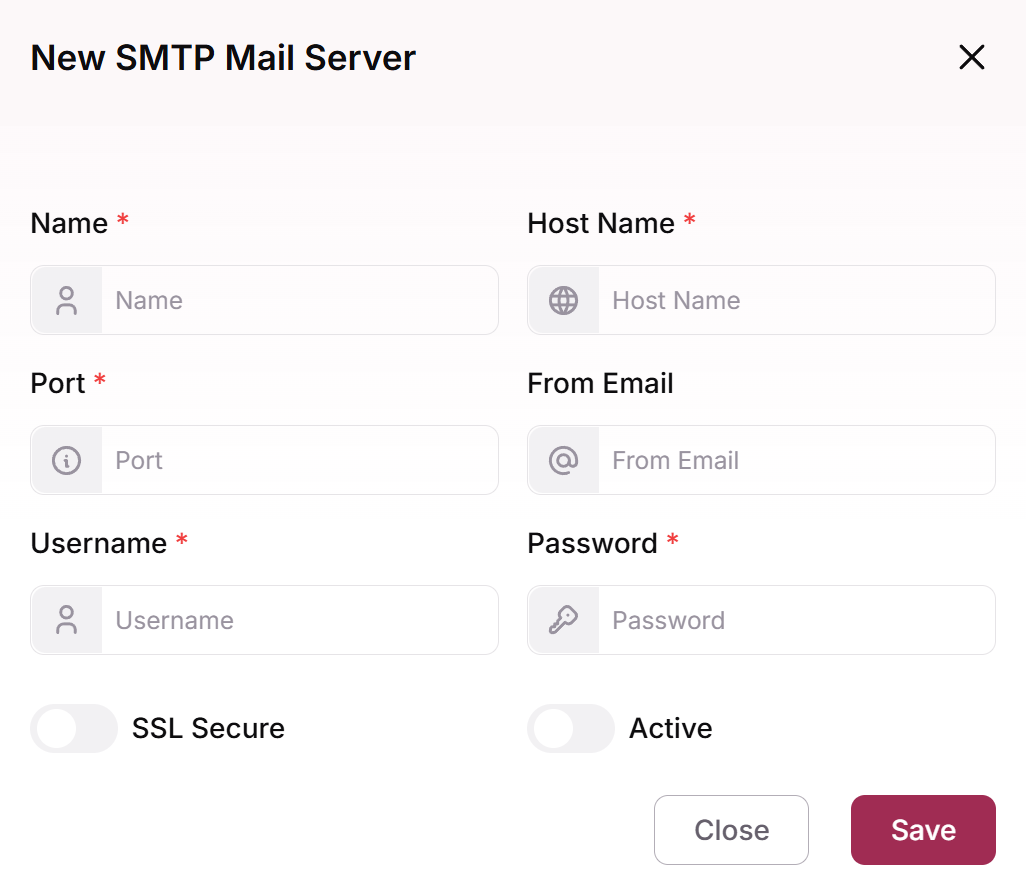

Step 2: Configure the SMTP Server

Fill in the following fields:

  • Name — a label to identify this server (e.g. "SendGrid Production").

  • Host Name — the SMTP hostname provided by your email service (e.g. smtp.sendgrid.net).

  • Port — the SMTP port (typically 587 for TLS or 465 for SSL).

  • Username — your SMTP account username.

  • Password — your SMTP account password.

  • From Email — (optional) the sender address that appears on outgoing emails.

  • SSL Secure — enable if your provider requires SSL.

  • Active — toggle on to make this server available immediately.

Active

Click Save to add the server to your list.

Step 3: Test the Connection

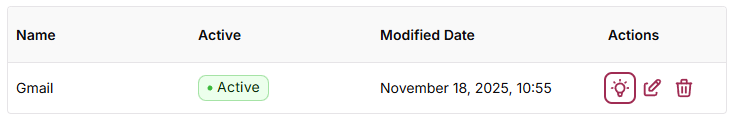

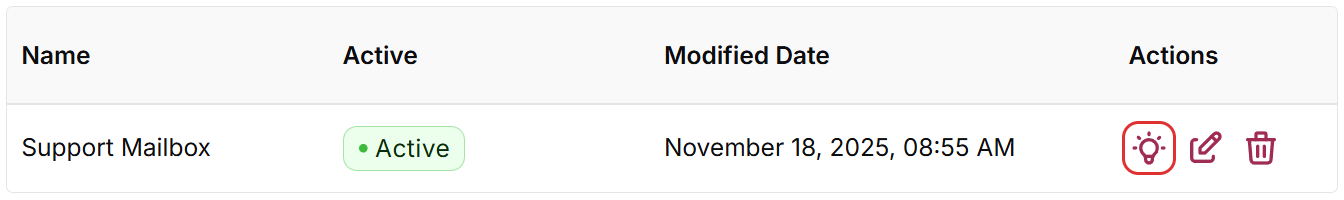

  1. In the SMTP servers list, click Test next to the server you want to verify.

Test the Connection

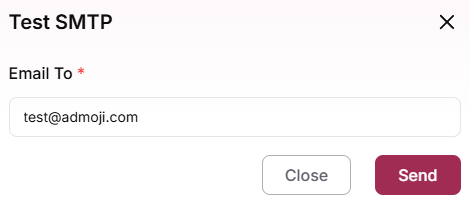

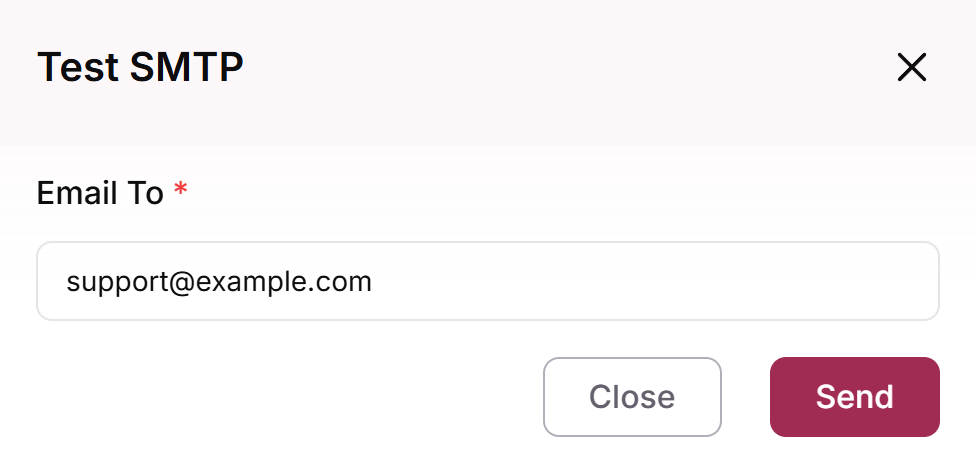

  1. Enter the Email To address where you want to receive the test message.

  2. Click Send. If the connection succeeds, you will receive a confirmation and a test email at the specified address.

Test the Connection
Note: You can add multiple SMTP servers — for example, one per provider or one per sending domain. To edit or remove a server, use the Edit and Delete buttons in the servers list.
